PRODUCT NAME:

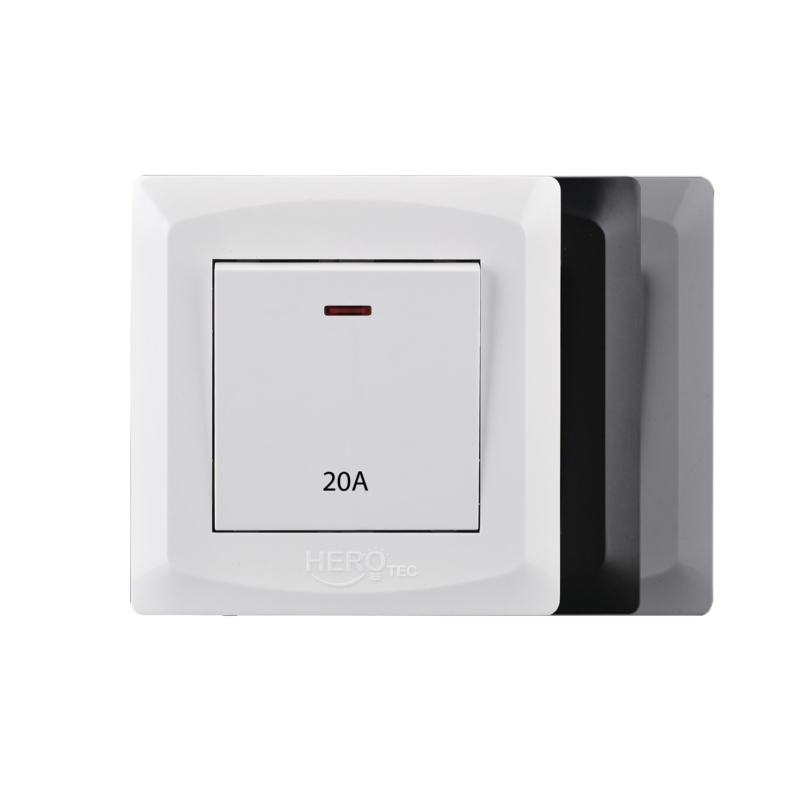

20A 1 GANG HEATER FLUSH SWITCH WITH NEON
ITEM NUMBER:
B1121
COLOR:
White/Black/Gray

PRODUCT FEATURES

SPECIFICATIONS

CATALOG
- Single Key 7*7
- Red light to indicate socket status ON/OFF
- On/Off status are written on key in case the light does not work
- With 20amp load capacity which is suitable for heaters and desert conditioners
- Night phosphorous reflector to allocate the location of the key in dark places
- Pure paint with curved edge shape gives a attractive reflection
- Rear bridges to save in the quantity of wires used and ensure that the rear case is not crowded as well as easy installation
- Featured with double pole to enhancing safety
- Perfectly designed cover to hides the screw holes which can be opened and closed with one click, maintaining a simple and modern appearance that can suit your various decoration styles
- Standard wire hole which makes the installation easier and provide more stability for the cables
- Dimensions : L=85.8mm, W=87. 8mm, H=32.71mm
- Voltage : 220-250V
- Current Rating :20AX
- Maximum Load :20Amp
- Socket Poles:Double poles
- Working Temperature :-20°C to +40°C
- Standard : IEC60069
